Qubits put into reverse
A group of scientists at the Niels Bohr Institute (NBI), University of Copenhagen, has figured out how to make spin qubits perform controlled backward rotations. This has never been shown before – and the journal Physical Review Letters, where the research has just been published, highlights the innovative discovery in the category 'Editor's Suggestion'.
"I guess you can say that we have figured out how to run the qubits in both forward and reverse gear – under certain circumstances", says Ph.D. Filip Malinowski, Center for Quantum Devices (QDev) at the Niels Bohr Institute.
Malinowski and QDev colleague Frederico Martins – who is now with the University of New South Wales, Australia – spearheaded the 'reverse project' which also included scientists from Purdue University, USA. The American scientists' role involved the production of extremely pure semiconductor crystals, which the NBI team needed as a foundation to build upon when putting together the specific 'environment' needed to force qubits into reverse.
The NBI discovery should be seen in the context of quantum computers, the new and powerful next generation super computers that scientists all over the world – QDev being no exception – aspire to develop through various projects.
In order to build a quantum computer you need qubits – and qubits differ from binary bits which are the backbone of contemporary computers. Binary bits can assume the values 0 or 1 and therefore – in principle – function as switches: they are either 'on', or they are 'off'.
Like classical bits, qubits can assume the values 0 and 1. However: qubits can also be in a state which represents 0 and 1 simultaneously, a so-called superposition.
“We encode qubits in the direction that the electron spin is pointing - and process quantum information by rotating spins around different axes. Theoretically, forward and backward rotations yield different superposition states, but experimentally only forward rotations were possible up now”, says Frederico Martins.
Speed and precision
The fact that qubits can be in a superposition state is what will enable a quantum computer – once it has been developed – to simultaneously undertake a truly large number of different calculations.
In order to carry out qubit research you have to work at very low temperatures – in the vicinity of absolute zero (-273.15 C) – the reason for that being that these conditions shield the qubits from various disturbances which may affect their level of performance, e.g. noise.

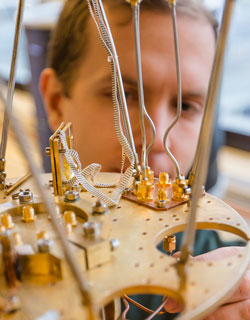

"Our experiments were conducted at just 0.02 C above absolute zero. We were able to create this very low temperature thanks to special equipment in the QDev lab – a version of a cryostat, a so-called dilution refrigerator", explains Filip Malinowski:
"And when a quantum computer is eventually developed, it will most likely also include some version of a cryostat".
The car analogy
What are the possible practical implications of the fact that you can now force qubits into reverse – as shown by the NBI scientists?
For one it makes it possible to carry out faster calculations of a given quantity of data than can be done relying on qubits equipped with just one – forward – gear.
But it is also possible to choose precision over speed by letting the 'reverse qubits' work at a moderate pace in a – future – quantum computer. In that case the advantage will be calculations of increased precision, tells Filip Malinowski: "And as a consequence you will be able to avoid a lot of errors that would have to be corrected through additional computation".
In order to understand just how much easier it suddenly becomes to control qubits once they have been supplied with a reverse gear, an analogy involving a car comes in handily, says associate professor Ferdinand Kuemmeth, head of the QDev team behind the discovery:
"Imagine that you drive a car along a crowded street – the street where you live – and you wish to park it exactly in front of your door. This can be a daunting task, especially if there are a lot of cars – (noise, when we are talking qubits) – around you. And now imagine doing this without a reverse gear: If you overshoot slightly, you missed your chance, and it's hard to come up with a fix. The same is true with rotating qubits: If one overshoots slightly – which frequently happens due to the noisy environment – there was no way to rotate the qubit back – until now!"
A building process
The reverse function in qubits has been demonstrated in an experiment involving a quantum 'environment' which the NBI scientists built on top of a tailor-made crystal – a sandwich-like structure delivered by Purdue University, made out of a material with extraordinarily uniform distribution of electrons.
At the base of the 'environment' is the crystal structure – which the NBI scientists covered with a polymer.
The next step was 'drawing' a pattern of grooves in the polymer layer, using a beam of electrons.
Then the – now weakened – polymer was flushed away from the indicated pattern – laying the grooves open, like ditches.
Finally the grooves on top of the crystal were filled with a metal to form electrodes, of which the smallest measured a mere 20 nanometer – and by applying different voltages to these electrodes it is possible to repel or attract electrons, ultimately placing individual electrons in specific positions.

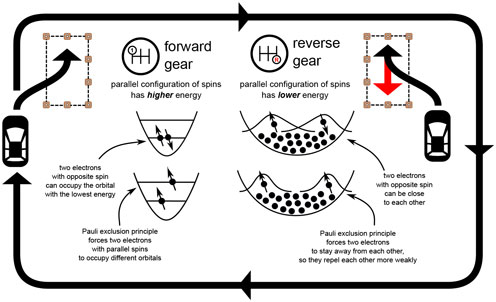

The NBI scientists used such a chip to accurately control the so-called exchange interaction – a fundamental interaction between electrons that can be used to force qubits into reverse – and how this is done is explained in more detail in the news graphic.
The condensed explanation centers around the fact that when two electron spins – one pointing upwards, the other downwards – are placed in the same confined space, they start rotating together, says Filip Malinowski:
"In this case these electrons are qubits – and if we return to the car analogy, they will start rotating or moving forward. Until now the assumption has been that this was indeed the only direction in which they could possibly move – which is where our discovery comes in".
The reverse function becomes reality when two oppositely pointing electron spins – qubits – are placed in a confined environment together with a lot of other electron pairs.
Now – still at very low temperatures – it suddenly becomes possible to force qubits into reverse.
Gallium arsenide – the material which the US-produced crystal is made of – plays a prominent role in the NBI experiment, but the technique will probably work equally well with a number of other semiconductors, says Filip Malinowski:
"Especially silicon, which is essential to the chips found in our present generation processors – but silicon could also be used as a building material for quantum computers".
- ArXiv.org: https://arxiv.org/abs/1706.01007
- Physical Review Letters: https://journals.aps.org/prl/abstract/10.1103/PhysRevLett.119.227701
Filip Malinowski, post doctoral fellow, Center for Quantum Devices, Niels Bohr Institute, University of Copenhagen, Mob: +45 2251 3132, Email: email@example.com
Ferdinan Kuemmeth, associate professor, Center for Quantum Devices, Niels Bohr Institute, University of Copenhagen, Mob: +45 2116 2657, Email: firstname.lastname@example.org
Frederico Martins, Email: email@example.com
